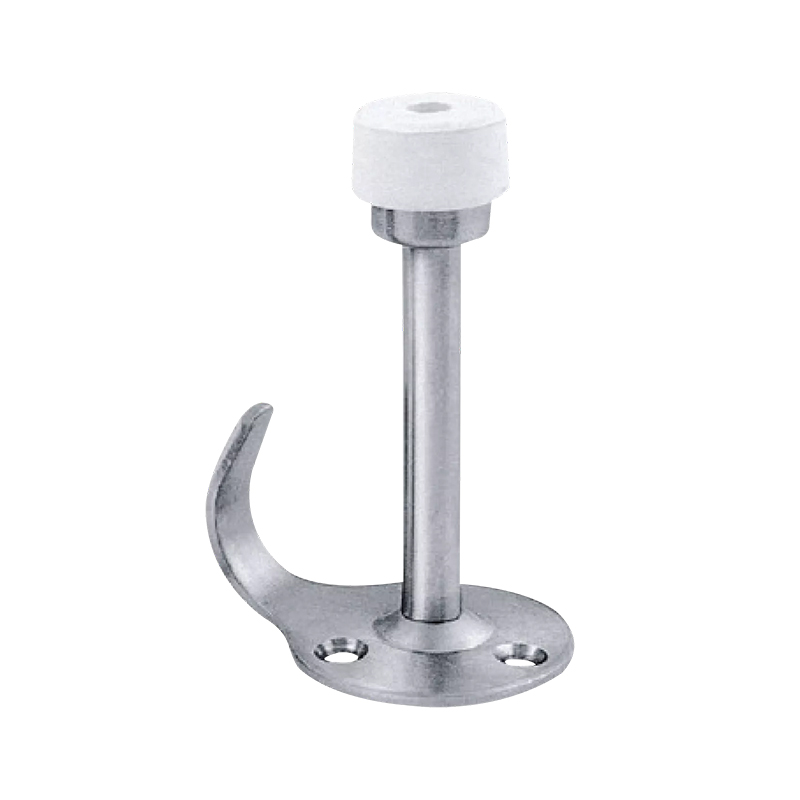

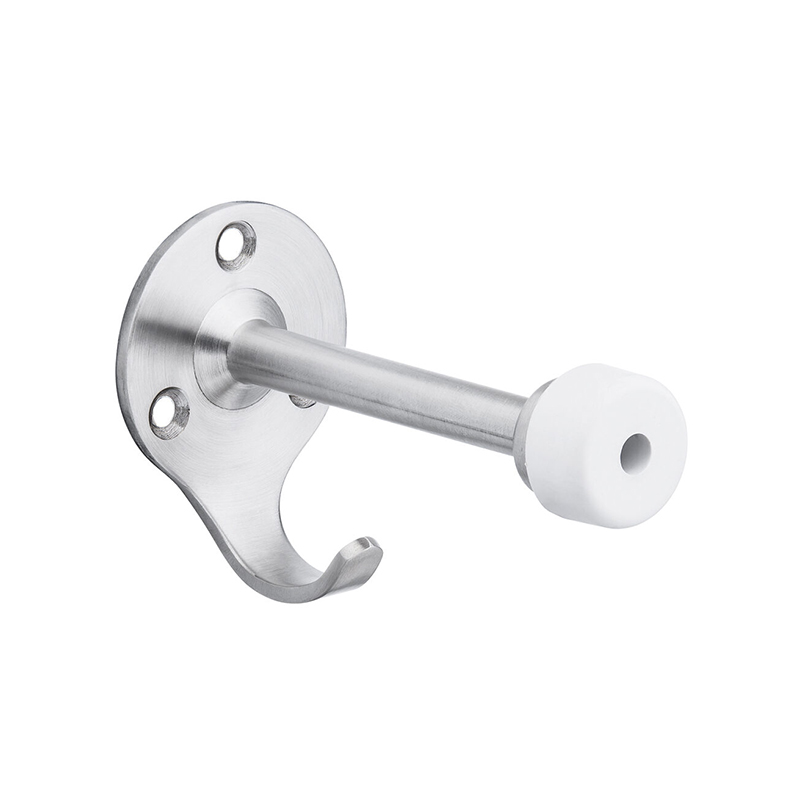

The Coat Hook With Door Stopper is a wall-mounted hardware device that integrates door stop cushioning and clothing hanging functions, achieving both door impact protection and item storage through a single structure. The main body uses a stainless steel support rod structure with a rubber buffer head at the front, effectively absorbing impact force when the door opens and contacts the wall, thus reducing damage to the door handle or door panel from impact. It also features a curved hook structure at the bottom for more efficient space utilization, making it suitable for various interior space structures.
| Door Hardware | Parameter |
| Model Number | DS05-006D |
| Size | Ø47*65*96mm |
| Material | Satin Stainless Steel + Rubber |
| Finshes | Black PVD, Matt Antique Brass-PVD, Polished Brass/PVD, Polished Stainless Steel, Satin Brass PVD, Satin Stainless Steel |
| Factory Nature | China Manufacturers Suppliers Factory |
1. Robust Structure

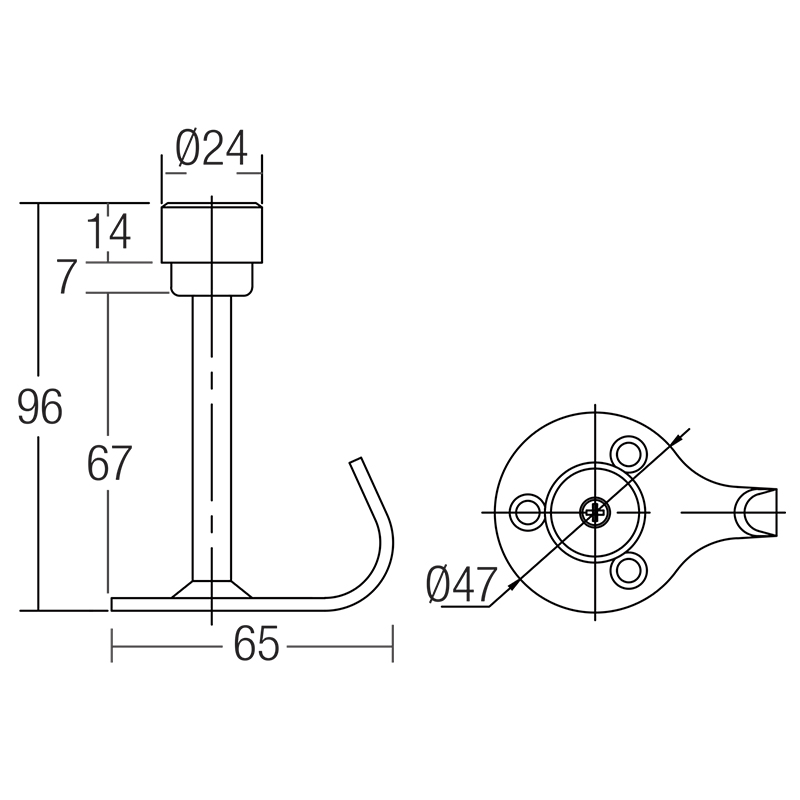

The Coat Hook With Door Stopper features a high-strength stainless steel main structure, with an overall height of approximately 96 mm and a support rod length of approximately 67 mm. The base diameter is approximately 47 mm, and it utilizes a three-point screw fixing method to enhance structural stability. The hook section has a single-point load-bearing capacity of over 20 kg, maintaining structural stability even under long-term use.
2. Cushioning Protection
The product is equipped with a 24 mm diameter rubber cushioning head, which absorbs impact energy when the door is opened. Laboratory door impact tests show that the rubber cushioning structure can reduce impact force by approximately 65% to 75%, thereby reducing the risk of damage to the wall from the door handle or door panel and improving door protection.
3. Corrosion-Resistant Material
The main body is made of high-grade stainless steel with a brushed surface to enhance oxidation resistance. It shows no significant corrosion after more than 96 hours in a standard salt spray test environment. The Coat Hook With Door Stopper maintains stable structural performance and surface condition even in humid environments.
4. Stable Installation
The base structure is designed with a diameter of approximately 47 mm and features a three-hole mounting structure. The screw fixing depth is approximately 14 mm, providing a stable fixing point in wooden wall panels or solid walls. According to installation stability tests, the three-point fixing structure improves resistance to loosening by approximately 40%.
5. Surface Finish
The Coat Hook With Door Stopper supports various surface treatments, including brushed stainless steel, polished stainless steel, and PVD surface treatment. The PVD coating thickness is approximately 0.3 microns, and the surface hardness can reach HV1000 or higher, ensuring the product maintains a stable appearance during long-term use.
1. Home Entryway
Installing a Coat Hook With Door Stopper on the wall of your home entryway provides a cushioning effect when the door opens, while also offering a hanging spot for coats or bags. The door handle contacts the rubber stopper when the door opens, reducing wall damage and keeping the interior space tidy.
2. Bedroom Space
Installing this product on the bedroom wall allows it to function as a door bumper, while also providing hooks for hanging frequently used clothing or household items. The Coat Hook With Door Stopper has a height of approximately 96 mm, allowing for multi-functional use without taking up too much wall space.
3. Bathroom Environment
Installing a Coat Hook With Door Stopper on the wall behind the bathroom door allows for hanging towels or clothing. The rubber doorstop provides cushioning protection when the door opens, while the stainless steel body maintains stable structural performance in humid environments.
4. Office Space
Coat Hook With Door Stoppers can be installed on the interior walls of an office for door bumper protection, while also providing a temporary hanging spot for bags or clothing. Its compact design ensures excellent practicality and space utilization even in limited spaces.
5. Hotel Guest Rooms
Coat hooks with door stoppers can be installed on the wall behind the door in hotel guest rooms to protect the wall and door structure, while providing a place for guests to hang clothing or bags. The metal finish can maintain consistency with the interior décor.
A: Under standard installation conditions, the hook portion of this product typically has a load-bearing capacity of over 20 kg. The load-bearing capacity mainly depends on the wall structure and the screw fixing method. Installing it on a solid wall or thick wooden structure will provide more stable load-bearing performance.
A: The front end of the doorstop is made of wear-resistant rubber material, with a hardness typically controlled between 60 and 70 Shore A. This hardness range allows it to absorb impact while maintaining good wear resistance, ensuring a stable cushioning effect over a long period under normal use.
A: The main body of the Coat Hook With Door Stopper is made of stainless steel with a surface treatment process, giving it good corrosion resistance. When used in humid environments, simply keeping the surface clean will maintain stable performance.
A: During installation, ensure the base is completely flush with the wall and use appropriately sized screws according to the three-hole fixing structure. Drilling depth is generally recommended to be at least 14 mm to ensure structural stability and long-term safety.
A: The Coat Hook With Door Stopper supports various surface finishes, including brushed stainless steel, polished stainless steel, and PVD finish. Different surface treatments can be selected to match interior décor styles and meet different space design needs.
