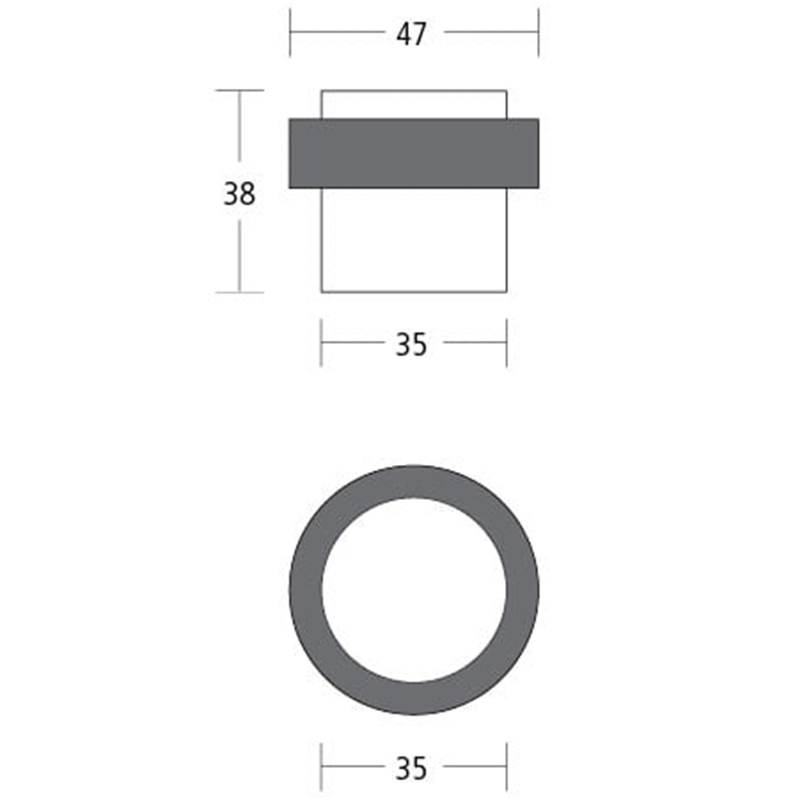

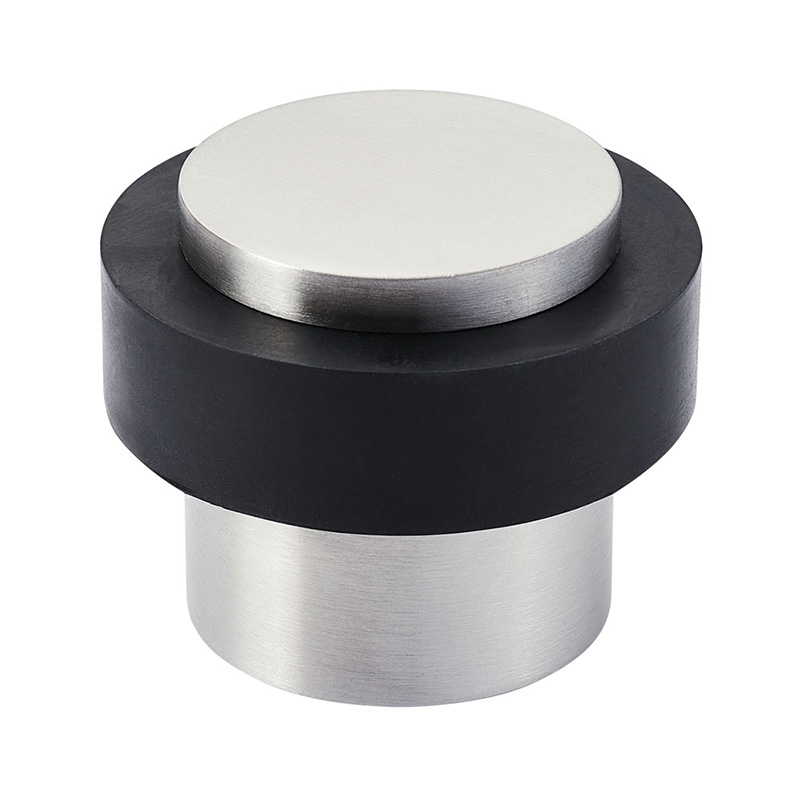

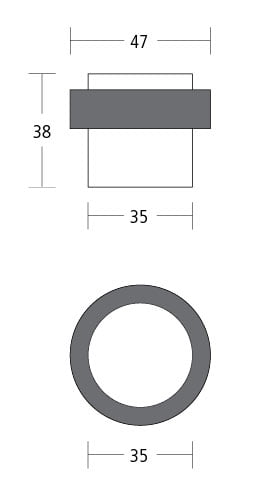

The Stainless Steel Floor Mounted Door Stop is a door stop device that is fixed to the ground at the bottom to control the opening angle of the door and prevent it from hitting walls or furniture. The main body of the product is made of stainless steel, with an outer layer of high-density rubber shock absorbers. The combination of a metal structure and elastic materials achieves shock absorption and protection. The standard diameter is approximately 47 mm, the height is approximately 38 mm, and the bottom mounting diameter is approximately 35 mm, resulting in a compact and stable overall structure. Multiple surface finishes are available, including brushed stainless steel and PVD color treatment, balancing structural strength and aesthetic uniformity, making it suitable for spaces with strict requirements on hardware quality.
| Door Hardware | Parameter |
| Model Number | DS05-002A |
| Size | 47*38mm |
| Material | Satin Stainless Steel + Rubber |
| Finshes | Black PVD, Matt Antique Brass-PVD, Polished Brass/PVD, Polished Stainless Steel, Satin Brass PVD, Satin Stainless Steel |
| Factory Nature | China Manufacturers Suppliers Factory |
1. Robust Main Structure
The Stainless Steel Floor Mounted Door Stop features a solid stainless steel main structure, approximately 47 mm in diameter and 38 mm in height. The metal components have a compressive strength exceeding 500 MPa and can withstand at least 1000 impacts in repeated impact tests without deformation, maintaining structural integrity.
2. Cushioning Design
The outer layer is equipped with a high-density rubber ring, approximately 10 mm thick, with a hardness of 60A. The rubber material effectively absorbs impact force when in contact with the door, reducing direct metal-to-metal collisions. The cushioning area has stable rebound performance and is not prone to cracking or significant aging after long-term use.
3. Secure Installation
The bottom mounting is approximately 35 mm in diameter and is fixed to the ground with expansion screws. The mounting hole design is precise, and the overall pull-out force after tightening the threads can reach over 800 N, ensuring the door remains secure and does not loosen or shift even with frequent opening and closing.
4. Refined Surface Finish
The surface can be selected from brushed stainless steel or PVD treatment, with the brushing roughness controlled within Ra0.8. The PVD coating is approximately 0.25 micrometers thick, achieving an adhesion rating of 5B. After a 48-hour salt spray test, no significant corrosion was observed, and the appearance remained stable.
5. Compact Structure
The overall dimensions are controlled within a 47mm diameter range, resulting in a small footprint. After installation, it adheres closely to the ground, reducing the risk of tripping. The harmonious ratio of metal to rubber maintains a clean visual appearance and adapts to different door opening angles.
1. Residential Entrance Doors
In residential entrance door installations, Stainless Steel Floor Mounted Door Stops effectively limit the door opening angle, preventing direct contact between the door handle and the wall. The fixed floor structure provides greater impact resistance and improves door safety.
2. Office Spaces
In office areas, doors are opened frequently. Installing floor-mounted door stops prevents doors from colliding with partitions or equipment, improving the protection of indoor facilities.
3. Hotel Guest Rooms
Hotel guest room doors require clean walls. Floor-mounted door stops control the door opening position, reducing wall maintenance frequency and maintaining the overall aesthetics of the space.
4. Commercial Corridors
In commercial corridors, door opening angles need to be controlled within a reasonable range. Floor-mounted door stops maintain stable door positioning, reducing the risk of collisions and improving the management of public areas.
5. Apartment Floors
In apartment corridors or public areas, doors are used frequently. Installing Stainless Steel Floor Mounted Door Stops standardizes door opening restrictions, reducing wear and tear on facilities.
A: The product is secured with expansion screws at the bottom, and the pull-out force after installation can reach over 800N. As long as it is installed according to standard methods, it will not loosen under normal door impact conditions.
A: The rubber hardness reaches 60A level, possessing excellent resilience. Under normal indoor conditions, it is not prone to cracking or significant aging over long-term use, maintaining stable buffering performance.
A: Supports various PVD surface treatments, including black and brushed silver. The coating adhesion reaches 5B level, maintaining long-term color stability and resisting fading.
A: Installation requires drilling holes in the ground and fixing expansion screws. It is recommended to use an electric drill with the corresponding drill bit to ensure precise hole positioning, thereby guaranteeing product fit and stability.
A: The main body is made of stainless steel, which has strong impact resistance. It remains structurally intact after repeated impact tests and is suitable for spaces where doors are frequently opened.
