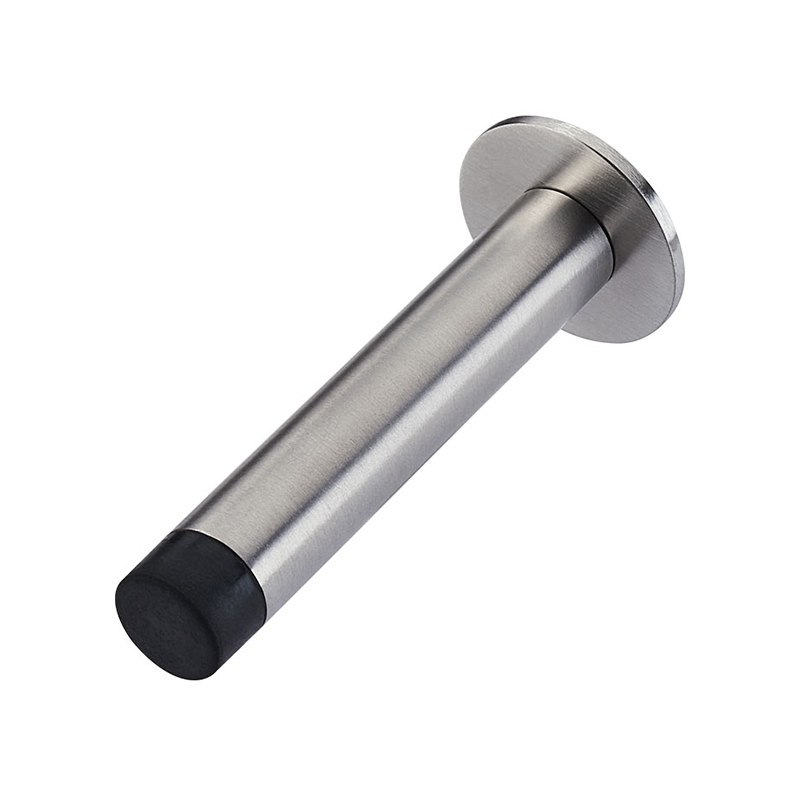

The Stainless Steel Wall Mounted Door Stop is a door limiting device that is screwed and fixed to a wall to control the door opening angle and prevent the door handle or door panel from hitting the wall. The main body of the product is made of stainless steel, and the front end is equipped with a high-elasticity rubber buffer head. Impact dispersion is achieved through a combination of metal support and rubber energy-absorbing structure. The Stainless Steel Wall Mounted Door Stop combines a simple cylindrical shape with various surface treatments to achieve a balance between structural strength and aesthetic appeal, meeting the needs of spaces that require quality and attention to detail.
| Door Hardware | Parameter |
| Model Number | DS05-006A |

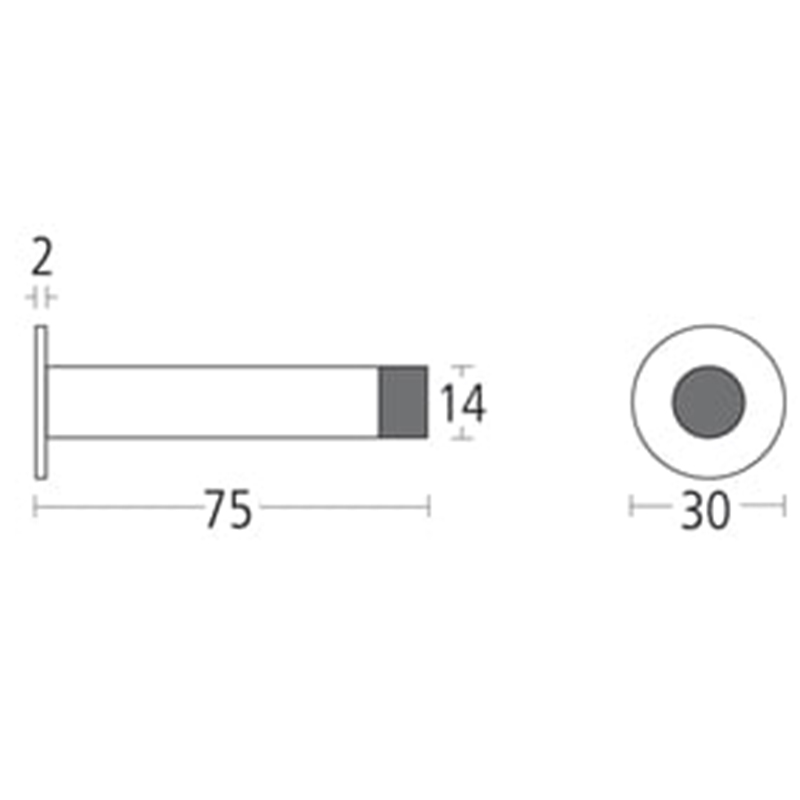

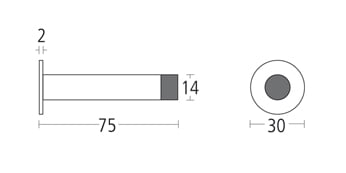

| Size | Ø14*75mm Base: Ø30m*2mm |
| Material | Satin Stainless Steel + Rubber |
| Finshes | Black PVD, Matt Antique Brass-PVD, Polished Brass/PVD, Polished Stainless Steel, Satin Brass PVD, Satin Stainless Steel |
| Factory Nature | China Manufacturers Suppliers Factory |
1. Robust Structure
The Stainless Steel Wall Mounted Door Stop is machined from a single piece of stainless steel, with a 75mm long and 14mm diameter rod. The material boasts a tensile strength exceeding 520MPa and can withstand at least 1200 door impacts in continuous impact testing while maintaining its shape.
2. Cushioning Stability
The front rubber buffer head is approximately 14mm in diameter and has a hardness rating of 60A. The rubber absorbs kinetic energy upon impact, reducing direct contact between the door and the wall. After 500 compression and rebound tests, the rebound rate remains above 90%.
3. Precise Installation
The base is 30mm in diameter and approximately 2mm thick, secured with double screws for enhanced stability. After installation, it withstands a tensile force of over 700N, ensuring no loosening or shifting even with frequent door opening and closing.
4. Corrosion Resistant Treatment
Brushed stainless steel and PVD finishes are available as options. The wire roughness is controlled within Ra0.8, and the PVD coating thickness is approximately 0.25 micrometers. No significant corrosion was observed after a 48-hour salt spray test, maintaining a stable appearance.
5. Compact Structure
The overall dimensions are compact, with a 75mm length effectively controlling the door opening distance. When installed on the wall, it does not occupy floor space, reducing the risk of tripping while ensuring precise door positioning.
1. Family Bedrooms
In family bedrooms, installing a Stainless Steel Wall Mounted Door Stop precisely limits the door opening angle, preventing door handles from hitting walls or cabinet edges, reducing paint peeling and furniture wear, and improving the overall cleanliness and maintenance efficiency of the space.
2. Office/Meeting Rooms
Meeting room doors are opened frequently. Wall-mounted door stops stably control the door opening range, preventing the door from hitting the projection screen or wall decorations, reducing maintenance costs due to repeated impacts, and improving the standardization and stability of space use.
3. Hotel Guest Rooms
Hotel guest rooms require high wall integrity. Installing a Stainless Steel Wall Mounted Door Stop effectively reduces damage caused by door handles hitting the wall, extends the renovation period, and maintains a clean and unified visual effect in the guest rooms.
4. Apartment Units
Installing wall-mounted door stops uniformly in apartment units standardizes door opening angles, reduces wall wear caused by long-term use, facilitates centralized maintenance and management by property management, and improves the overall durability of the space.
5. Commercial Shops
Commercial shop doors open frequently. Wall-mounted doorstops can control the opening distance of the doors, preventing collisions between the doors and display cabinets or glass partitions, reducing the risk of facility damage, and maintaining the operational order and safety standards of the space.
A: The product uses screw fixing; installation is completed after pre-drilling holes in the wall. As long as the hole dimensions are accurate and appropriate expansion joints are used, a secure fixation is guaranteed. Under normal circumstances, no complicated installation process is required.
A: The rubber part has undergone compression and rebound testing and maintains good elasticity even after long-term repeated stress. Under normal indoor conditions, there will be no significant collapse or structural loosening issues.
A: We offer a variety of surface treatment options, including brushed stainless steel and PVD color treatment. Different treatments can meet spatial matching needs, and the surface stability has been verified through corrosion resistance testing.
A: The stainless steel main structure has high impact resistance and is suitable for regular wooden and metal doors. For extra-heavy doors, it is recommended to determine the installation location and fixing method based on the door's weight.
A: Different length specifications can be evaluated based on project requirements. Before customization, the door opening angle and installation height need to be confirmed to ensure accurate and stable limiting effect.
