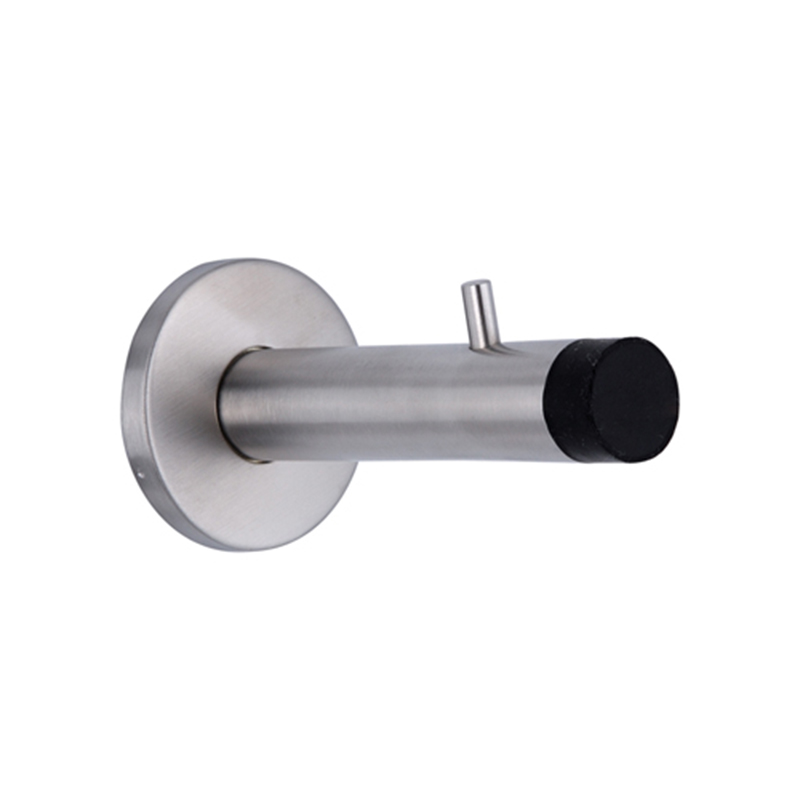

The Wall Mounted Door Stop With Hook is a wall-mounted hardware accessory that combines wall-mounted anti-collision and convenient hanging. The main body is made of stainless steel with black rubber buffer ends. After installation, it stops the door at a designated position, reducing hard collisions between the door handle and the wall, baseboard, or furniture. The product uses a round base for wall mounting and integrates hook points at the top of the rod, which can be used to hang lightweight items such as keys and access cards. This makes the traffic flow in the doorway area more focused and is suitable for spaces that require a uniform door opening angle and improved storage efficiency.
| Door Hardware | Parameter |
| Model Number | DS05-006B |
| Size | Ø50*96mm |
| Material | Satin Stainless Steel + Rubber |
| Finshes | Black PVD, Matt Antique Brass-PVD, Polished Brass/PVD, Polished Stainless Steel, Satin Brass PVD, Satin Stainless Steel |
| Factory Nature | China Manufacturers Suppliers Factory |
1. Stable and Impact-Resistant

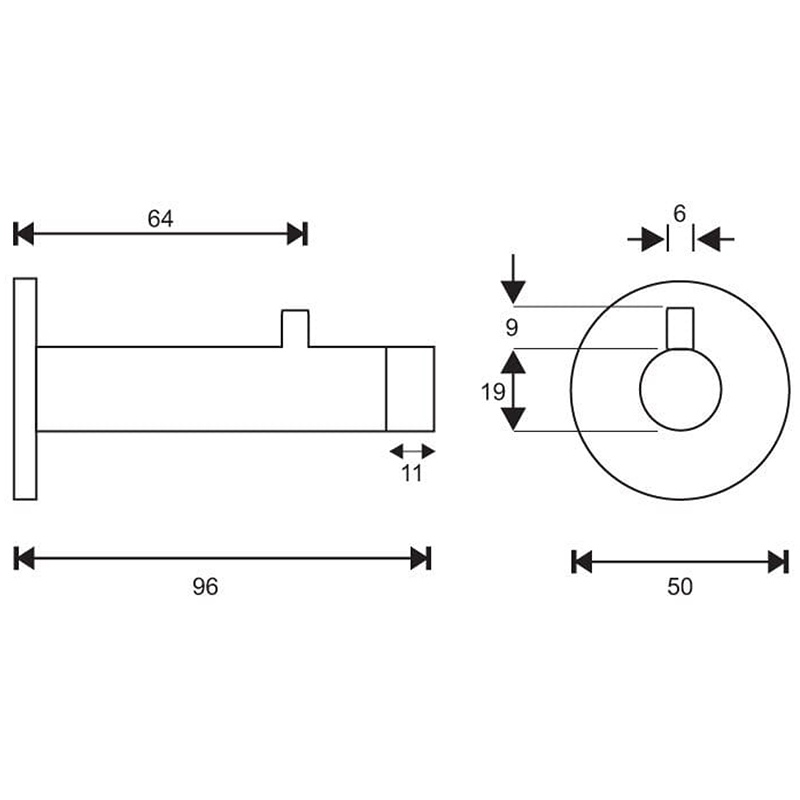

The Ø50mm diameter base is fixed to the wall, with a thickness of approximately 2mm to increase the contact area. The overall extension of 96mm creates a clear limiting point. The 11mm rubber end contacts the door upon arrival, preventing hard metal-on-wall impact. The circular disc distributes force more evenly, and the screws are less prone to loosening after tightening. This minimizes the risk of collisions between door handles, corners, and furniture surfaces, making repairs more manageable.
2. Quiet and Resilient
The 11mm thick rubber buffer head uses a soft-hard formula, allowing for rapid rebound and dispersing impact energy after pressure, resulting in lower noise when closing the door. The rubber and stainless steel ends are tightly bonded, preventing loosening or detachment after repeated impacts. The higher coefficient of friction on the buffer surface reduces door rebound vibration and secondary collisions, while also reducing paint chipping and dents on the wall, creating a quieter environment in the surrounding area.
3. Integrated Hook
The top hook section is integrated with the main body. The effective distance from the hanging point to the wall is approximately 64mm, and the hook protrudes approximately 9mm, with a distance of approximately 6mm from the edge of the disc, making hanging more convenient. It can hang keychains, access cards, or small items. The Wall-Mounted Door Stop With Hook combines limiting the hook's position and hanging functionality, reducing the need for additional drilling.
4. Corrosion-Resistant and Easy to Clean
The surface can be treated with brushed stainless steel or black PVD coatings. The coating is uniform and dense, and after wear, it is not easy to expose the base material. Daily oil and water stains can be wiped clean with a damp cloth. The edges of the disc and the rod are chamfered for safer handling. It is not prone to rusting or discoloration in humid air, nor does it easily show fingerprints or highly reflective marks, making it easy to maintain a unified decoration style and texture over the long term, and reducing maintenance efforts.
5. Convenient Positioning
The Wall Mounted Door Stop With Hook comes with screws and expansion tubes, allowing for easy locking and fixing after pre-drilling holes in the wall; the Ø50mm diameter base disc easily covers the holes and improves stability under load; after installation, the gap between the door and the wall is small, preventing the door from shifting under load; it can be disassembled from the base for maintenance, and repeated installations maintain a consistent 96mm overhang dimension, making maintenance more time-saving and easier to standardize, facilitating mass production.
1. Toilet Stalls
Installed in public toilet stalls, the Wall Mounted Door Stop With Hook provides stable door stopping when the door is open, while the hooks are used to hang personal belongings. Structural integration reduces the number of additional hardware installations, resulting in a more focused and standardized spatial layout.
2. Hotel Guest Rooms
Installed on hotel guest room walls, it limits the door opening range, preventing door handles from contacting wall panels. The hook structure can also be used to temporarily hang lightweight items, improving wall space utilization and keeping the space tidy.
3. Office Areas
In office areas, where doors open frequently, the Wall Mounted Door Stop With Hook regulates door angles. The hanging function can be used to place work supplies, reducing the burden of clutter on desks.
4. Changing Areas
Installed in changing areas, the structure controls door opening, preventing obstruction of passageway space. Hooks can be used to hang clothing or bags, making wall functions more focused and optimizing workflow.
5. Commercial Stores
In retail or display spaces, Wall-Mounted Door Stop With Hooks prevent doors from touching display areas when opened. The hook structure helps display lightweight accessories, improves wall space utilization, and makes the overall layout more organized.
A: The product uses a surface-mounting method, fixed with expansion tubes and screws, requiring no pre-embedded steel parts or special reinforcement structures. Installation is complete simply by drilling holes in the wall and fixing it to the correct dimensions. It is suitable for common concrete or brick wall environments.
A: The hook and main rod are designed as a single welded structure, ensuring even stress distribution and long-term stable use. This structure does not support individual disassembly to avoid loosening or weakening of the connection points.
A: The rubber head is made of wear-resistant synthetic rubber, with a long service life under normal indoor conditions. Avoiding prolonged exposure to high temperatures or strong ultraviolet radiation can extend its lifespan and maintain its cushioning performance.
A: This Wall Mounted Door Stop With Hook achieves its anti-collision effect by limiting the door's opening angle, and its performance is not significantly affected by the door's thickness. Simply install it according to the wall location to fit standard wooden or metal door structures.
A: The brushed stainless steel surface has a textured structure that reduces noticeable fingerprint residue. Daily cleaning simply involves wiping with a dry cloth to restore the surface texture; no special maintenance is required.
