Installing door hinges may seem like a small part of a home renovation project, but it plays a crucial role in how smoothly and securely your door functions. Whether you’re replacing old hinges or fitting a new door, proper hinge installation ensures stability, quiet operation, and long-term durability. This detailed guide explains each step carefully and includes important precautions to help you complete the installation confidently.

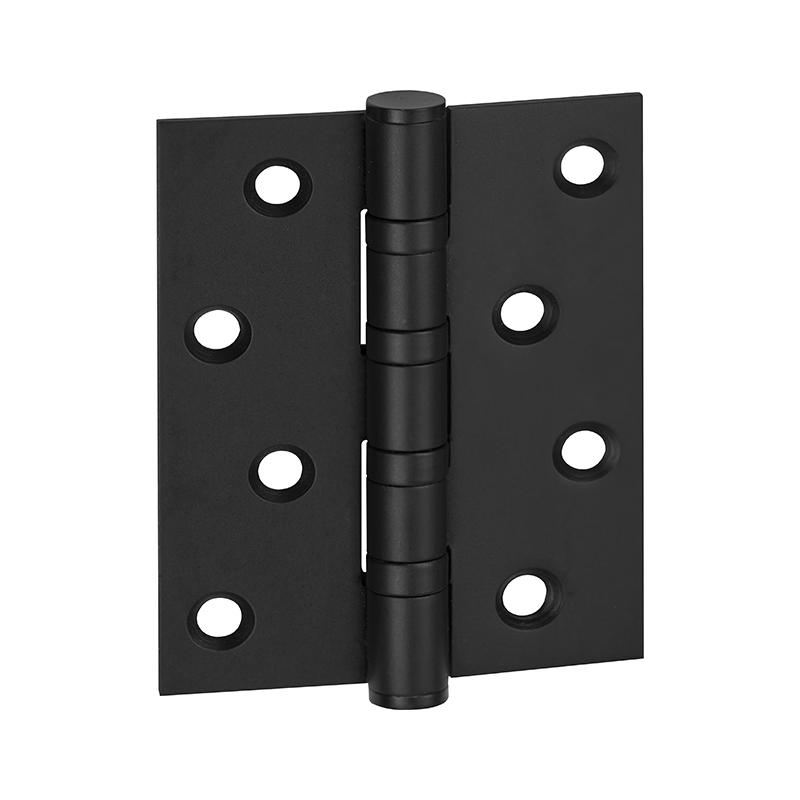

Door hinges are mechanical bearings that connect a door to its frame, allowing it to swing open and close. They must bear the door’s weight evenly and maintain alignment to prevent sagging or binding. Common hinge types include butt hinges, concealed hinges, ball-bearing hinges, and continuous hinges, each suited to specific door materials and uses.
A typical wooden interior door uses three butt hinges, while heavy entry or metal doors may require reinforced stainless steel hinges for added support.
Before starting, gather all the necessary tools and hardware to ensure efficiency and precision during installation.
Essential Tools:
Screwdriver or electric drill
Measuring tape
Pencil or marking knife
Chisel and hammer
Level
Utility knife
Screws (usually provided with hinges)
Optional Items:
Wood filler (for repair or adjustments)
Sandpaper (for smoothing mortises)
Painter’s tape (to protect door surfaces)
Start by deciding where the hinges will be positioned. Most standard doors have:
Top hinge: 7 inches from the top of the door
Bottom hinge: 10 inches from the bottom
Middle hinge (if applicable): centered between the two
Use a pencil and a square to draw straight, level lines across the door edge to mark hinge placement. Precise alignment ensures the door hangs evenly without stress on the screws.
Place the hinge leaf on the marked position and trace around it with a pencil or marking knife. This outline shows where you will create the mortise—the shallow recess where the hinge sits flush with the wood surface.
A hinge that sits too shallow can prevent the door from closing fully, while one that’s too deep can create unwanted gaps.
Use a sharp chisel and a hammer to remove wood within the marked outline.
Work slowly and carefully:
Tap gently along the outline to define the edges.
Gradually chisel out the inner area to a depth equal to the hinge leaf thickness.
Test the hinge fit frequently to ensure it sits level with the door surface.
Smooth the mortise with sandpaper if necessary. Always cut with the grain of the wood to prevent splintering.
Place the hinge back in the mortise and use a pencil to mark each screw hole.
Remove the hinge and drill small pilot holes—slightly smaller than the screw diameter—to make driving easier and to prevent the wood from splitting.
This step also helps ensure the hinge screws sit straight and firm.
Secure the hinge leaf to the door using screws.
It’s best to start with one screw per hinge, check alignment, and then drive in the remaining screws. This allows easy adjustment if the hinge shifts slightly during installation.
Avoid overtightening, as this can strip the screw holes or distort the hinge plate.
Once all hinges are fixed to the door, lift it and position it within the door frame. You may need assistance for heavy or solid-core doors.
Use wood wedges or spacers beneath the door to maintain the correct clearance (usually about 1/8 inch) at the top and sides.
With the door held in place, close it carefully to see where the hinge leaves contact the frame.
Trace the outlines for each hinge on the frame using a pencil or marking knife.
Repeat the chiseling and pilot hole drilling process on the frame side, ensuring each mortise matches the hinge’s depth and position exactly.
Screw the frame-side hinge leaves into their mortises.
Double-check alignment with a level to ensure the door hangs straight and swings smoothly.
If the door binds or rubs, slightly loosen the screws and adjust the hinge position until it moves freely.
Check Hinge Orientation:
Hinges must face the correct direction—pins should point upward, and hinge barrels should align perfectly. Installing them backward may cause improper movement.
Maintain Consistent Gap (Reveal):
Ensure equal spacing around the door edges. An uneven reveal can lead to friction against the frame or latch misalignment.
Pre-fit Before Screwing Fully:
Always test door movement before tightening all screws completely. Minor adjustments are easier to make while screws are still slightly loose.
Use Correct Screw Length:
For solid wood doors, 1¼–1½ inch screws are ideal. Short screws can loosen easily, while overly long ones may penetrate through the frame.
Avoid Using Power Tools at Full Torque:
Electric drills can overtighten and damage screws or hinge plates. Use moderate speed and torque settings.
Protect the Door Finish:
Apply painter’s tape around mortise areas to avoid scratches or tool marks during chiseling.
Level and Plumb Check:
Always use a spirit level to confirm the door hangs straight. Even a 1° misalignment can cause premature hinge wear.
Lubricate Moving Parts:
Apply a small drop of lubricant to the hinge pin after installation. This ensures smooth, quiet operation and prevents rusting.
Match Hinge Material with Door Type:
Use stainless steel or brass hinges for outdoor and bathroom doors due to moisture resistance, and mild steel hinges for interior wood doors.
Test Door Swing and Clearance:
Open and close the door several times. Check that it moves freely and the latch aligns properly with the strike plate.
Skipping pilot holes: Leads to split wood or misaligned screws.
Uneven mortise depth: Causes hinge binding or door sagging.
Overtightening screws: Warps hinges and weakens the wood.
Ignoring weight capacity: Each hinge type supports a specific load; using undersized hinges on heavy doors may lead to failure.
Neglecting environmental conditions: Humidity and temperature changes can affect wood expansion—always leave slight clearance around the door edges.
Proper hinge installation is only part of ensuring long-term door performance. Regular maintenance keeps them operating smoothly.
Lubricate periodically with a silicone or graphite-based lubricant to reduce noise and wear.
Check screws every six months for loosening due to door movement or seasonal expansion.
Clean hinge surfaces to prevent dust buildup and corrosion, especially for outdoor installations.
Replace damaged screws immediately if heads are stripped or rusted.
A well-maintained hinge system can last for decades, maintaining both the appearance and functionality of your door.
Installing door hinges correctly requires patience, precision, and attention to detail. The key steps—marking accurate mortises, using pilot holes, and ensuring perfect alignment—are essential for smooth operation and lasting durability. By following these detailed instructions and safety guidelines, you can achieve a professional-quality installation even without specialized tools.
Whether for a new build, a home renovation, or simple hinge replacement, the process is straightforward once you understand the principles. With careful preparation and steady workmanship, your door will swing effortlessly and remain stable for years to come.
